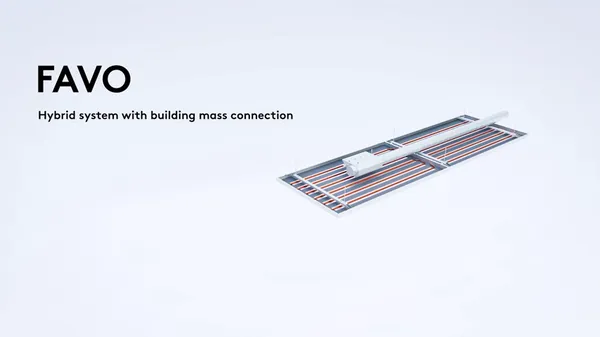

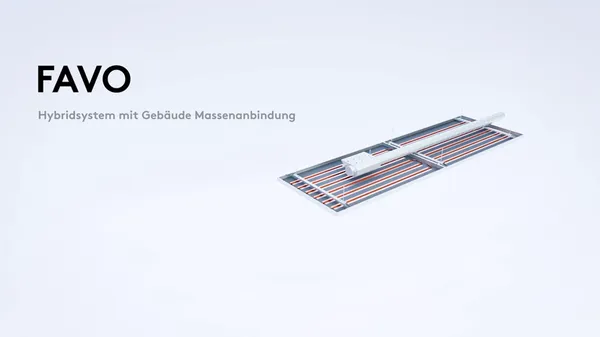

FAVO

Integrated supply air diffuser with thermal building mass connection

Thermal comfort according to EN ISO 7730, SIA 382/1
In combination with A11-S, SPECTRA M-S and SOFTLINE WOOD
Very high heating and cooling capacity
Superior sound absorption values (class A)
Building mass can be used as an additional thermal storage mass
Sound power level Lw < 30 dB(A)
Silent and draught-free fresh air supply
Connection to conventional ventilation ducts

Thanks to its versatile properties, our patented FAVO Hybrid system, in combination with the A11-S or SPECTRA M-S radiant ceiling sail or the SOFTLINE WOOD high performance module, combines different functions for room climate control. The solution offers very high heating and cooling capacity as well as a silent and draught-free fresh air supply.

FAVO also integrates the building mass into the overall thermal concept. The building mass acts as an additional thermal storage mass and can absorb heat and release it again at a later time. This allows the thermal storage mass of the building to be incorporated specifically into the heating and cooling concept.

Functionality

System combination:

+ A11-S
+ SPECTRA M-S
+ SOFTLINE WOOD

Dimensions:

Ceiling panel construction:
- Installation height: min. 205 mm

Standard dimensions:
- Length: 800 – 3000 mm
- Width: 400 – 1200 mm
- Height: 30 – 50 mm
Custom dimensions on request

Capacity water:

Mass storage capacity: up to 20 W/m² panel area

A11-S, SPECTRA M-S
Cooling: up to 120 W/m² (ΔT: 8 K) Active area ratio: 85 %
Heating: up to 117 W/m² (ΔT: 15 K)

SOFTLINE WOOD
Cooling: up to 102 W/m² (ΔT: 8 K)
Heating: up to 86 W/m² (ΔT: 15 K)

With flowing supply air, there will be a 20 to 40 % higher heating capacity.

Acoustics:

Sound absorption αw: up to 0,95
Sound absorption class A, EN ISO 11654
Telephony sound attenuation: up to 62 Db

SPECTRA M-S

Radiant metal ceiling sail

A11-S

Radiant metal ceiling sail

SOFTLINE WOOD

High performance module

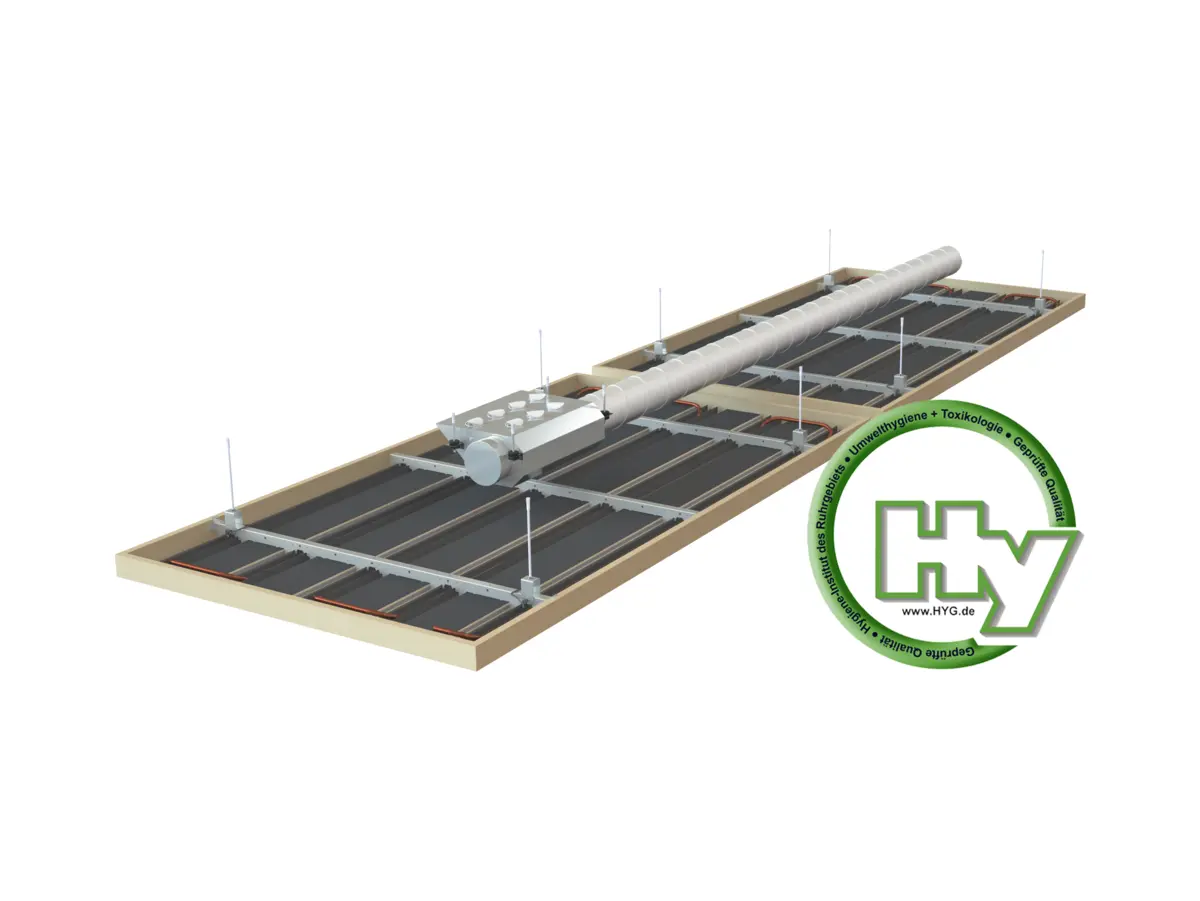

Hygiene compliance testing
