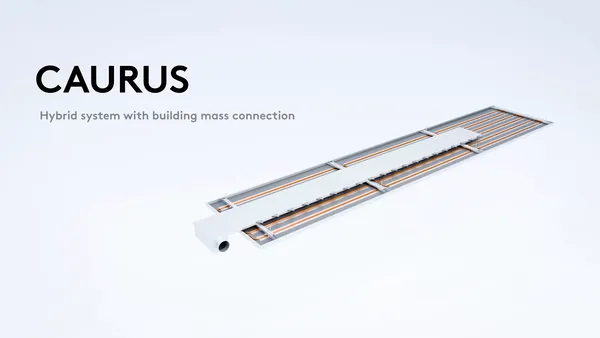

CAURUS

Integrated supply air diffuser with thermal building mass connection

Thermal comfort according to EN ISO 7730, SIA 382/1
In combination with A11-S, SPECTRA M-S and SOFTLINE WOOD
Very high heating and cooling capacity
Superior sound absorption values (class A)
Building mass can be used as an additional thermal storage mass
Integrated cross-talk sound attenuation (option)
Low construction height
Sound power level Lw < 30 dB(A)
Silent and draught-free fresh air supply

In combination with the A11-S, SPECTRA M-S ceiling sails or the SOFTLINE WOOD high performance module, the CAURUS Hybrid system combines heating and cooling, supply air distribution and acoustic effectiveness. The system offers very high heating and cooling capacity, silent and draught-free fresh air supply and superior sound absorption values.

Based on the thermo-active building system principle, the climate ceiling system integrates the building mass into the room's overall thermal concept as an additional thermal storage mass. The building mass can absorb heat and release it again at a later time. This allows its storage capacity to be used specifically as part of the heating and cooling concept.

Functionality

System combination:

+ A11-S
+ SPECTRA M-S

Dimensions:

Ceiling panel construction:
- Installation height: 80 – 200 mm

Standard dimensions:
- Length: 800 – 3000 mm
- Width: 400 – 1200 mm
- Height: 30 – 50 mm
Custom dimensions on request

Capacity water:

Mass storage capacity: up to 20 W/m² panel area

A11-S, SPECTRA M-S
Cooling: up to 137 W/m² (ΔT: 8 K)
Active area ratio: 85 %

Heating: up to 119 W/m² (ΔT: 15 K)

With flowing supply air, there will be a 20 to 40 % higher heating capacity.

Acoustics:

Sound absorption αw: up to 0,95
Sound absorption class A, EN ISO 11654
Telephony sound attenuation: up to 62 Db

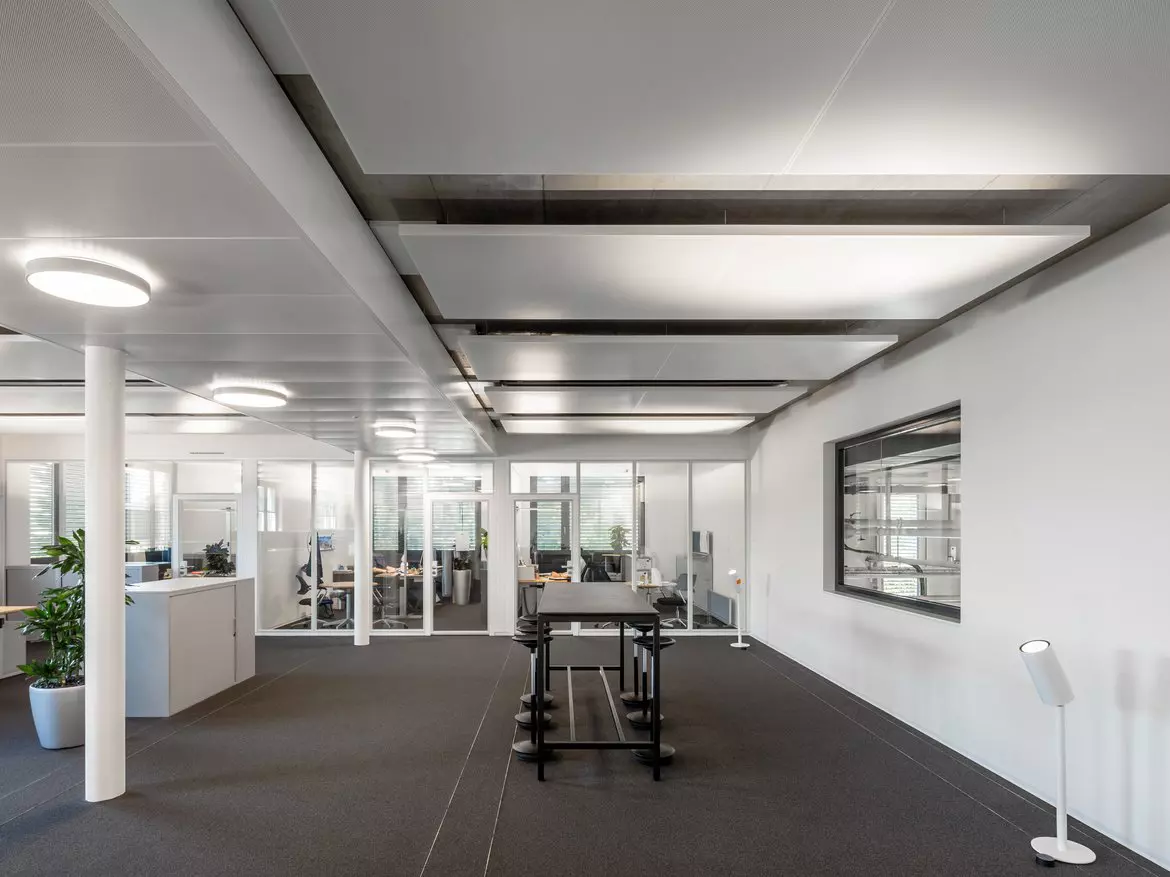

A11-S

Radiant metal ceiling sail

SPECTRA M-S

Radiant metal ceiling sail

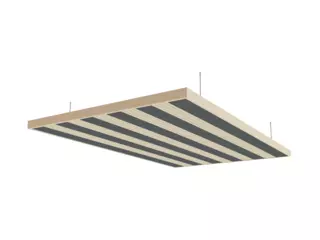

SOFTLINE WOOD

High performance module

Convector Wings

Additional performance

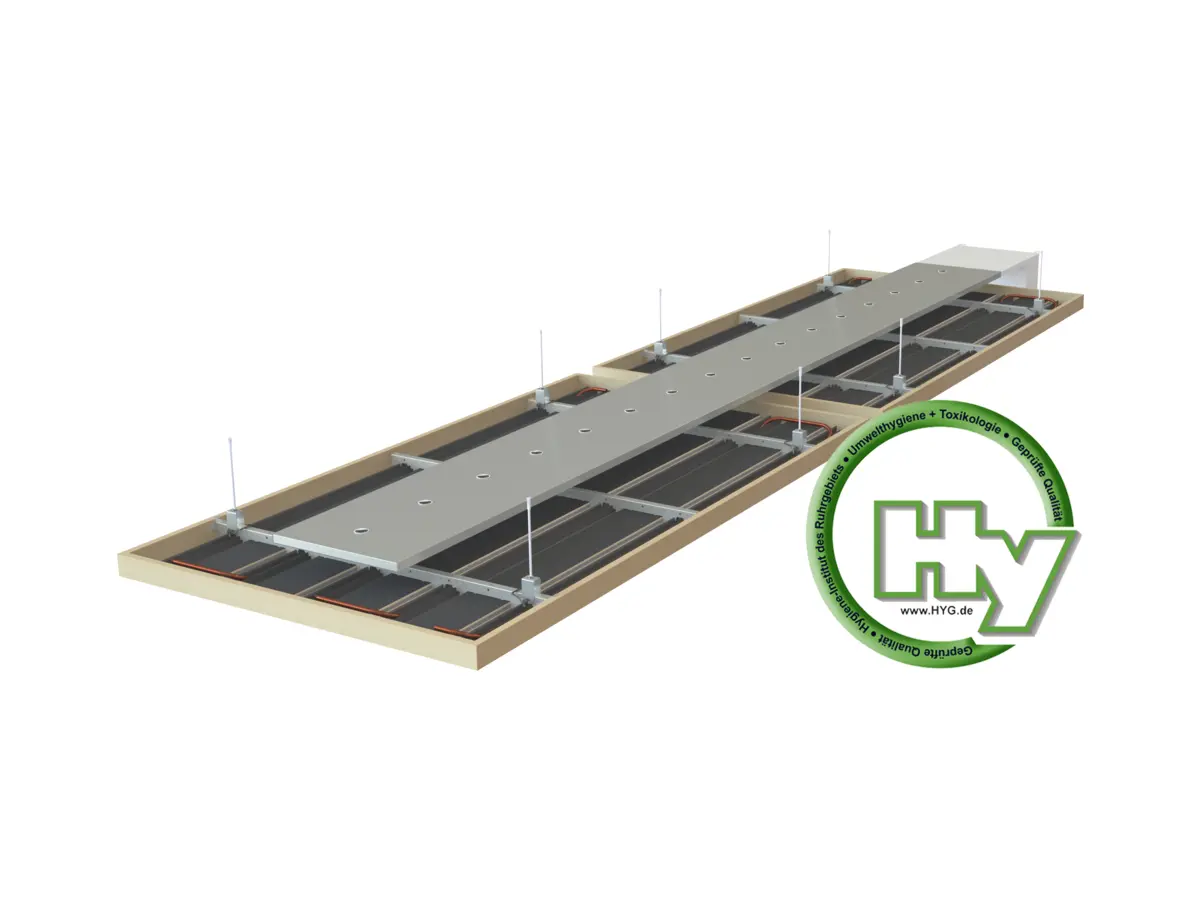

Hygiene compliance testing

Filter
