SOFTLINE WOOD

High performance module

Thermal comfort according to EN ISO 7730, SIA 382/1
Building material class B-s1, d0 according to EN 13501-1
High heating and cooling capacity
With optional absorbers: advanced sound absorption values (class B)
Fins with real wood surfaces in different wood types and perforation variants
Easy to install
Components can be integrated
Can be combined with CAURUS and FAVO

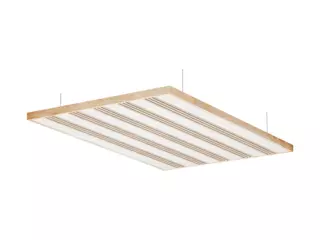

The SOFTLINE WOOD high performance module combines fins with real wood surfaces and high-performance heat-conducting profiles, enabling heating and cooling via the ceiling.

Room air flows around the heat-conducting profiles and supports heat transfer during heating and cooling. In combination with optional absorbers, the system can also contribute to sound absorption in the room.

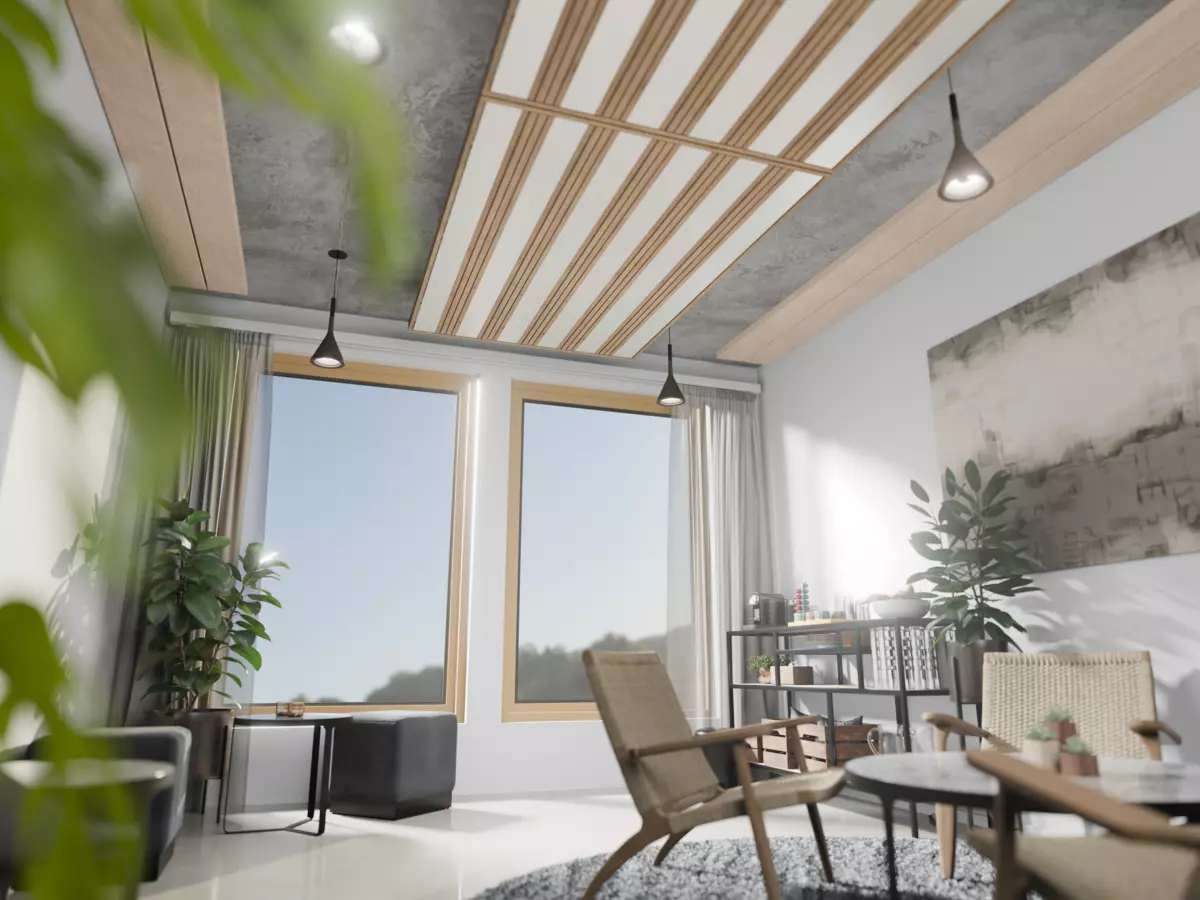

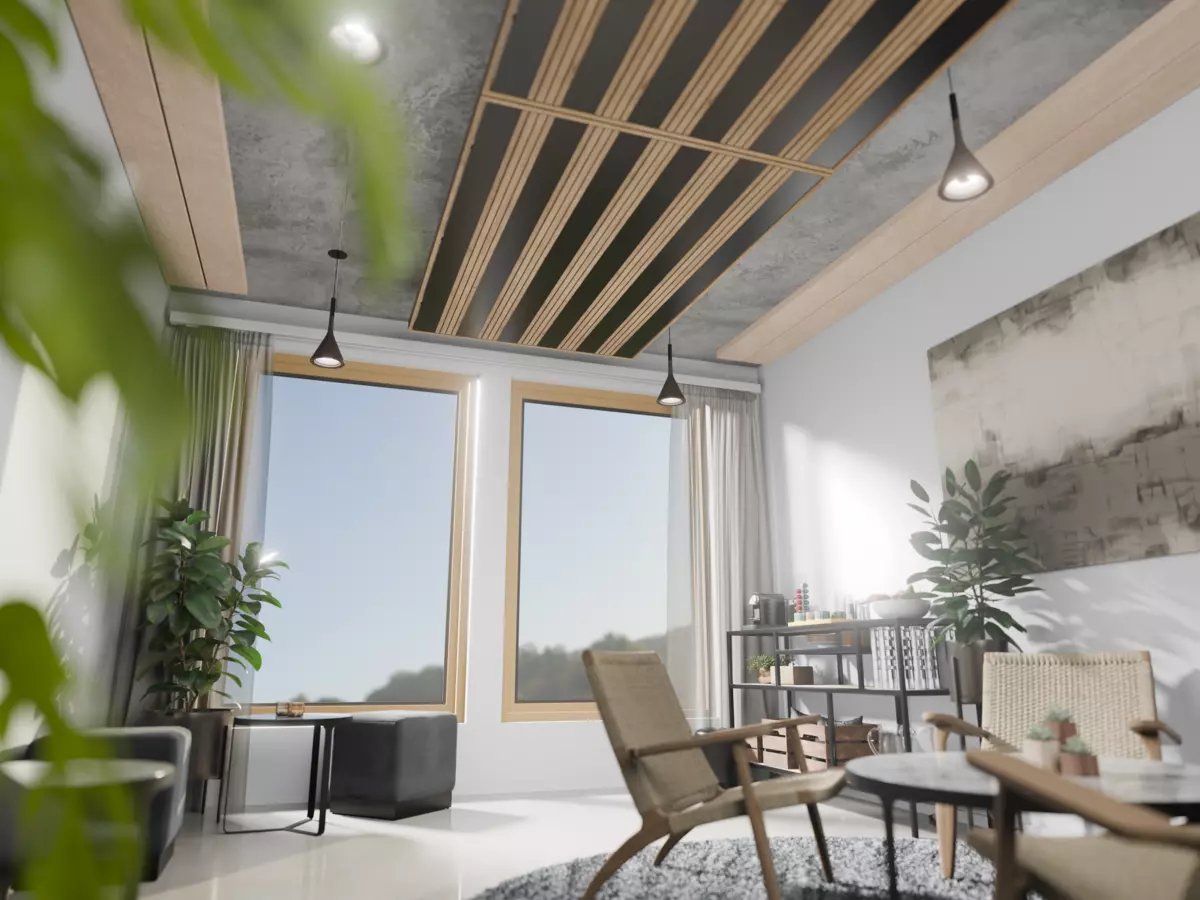

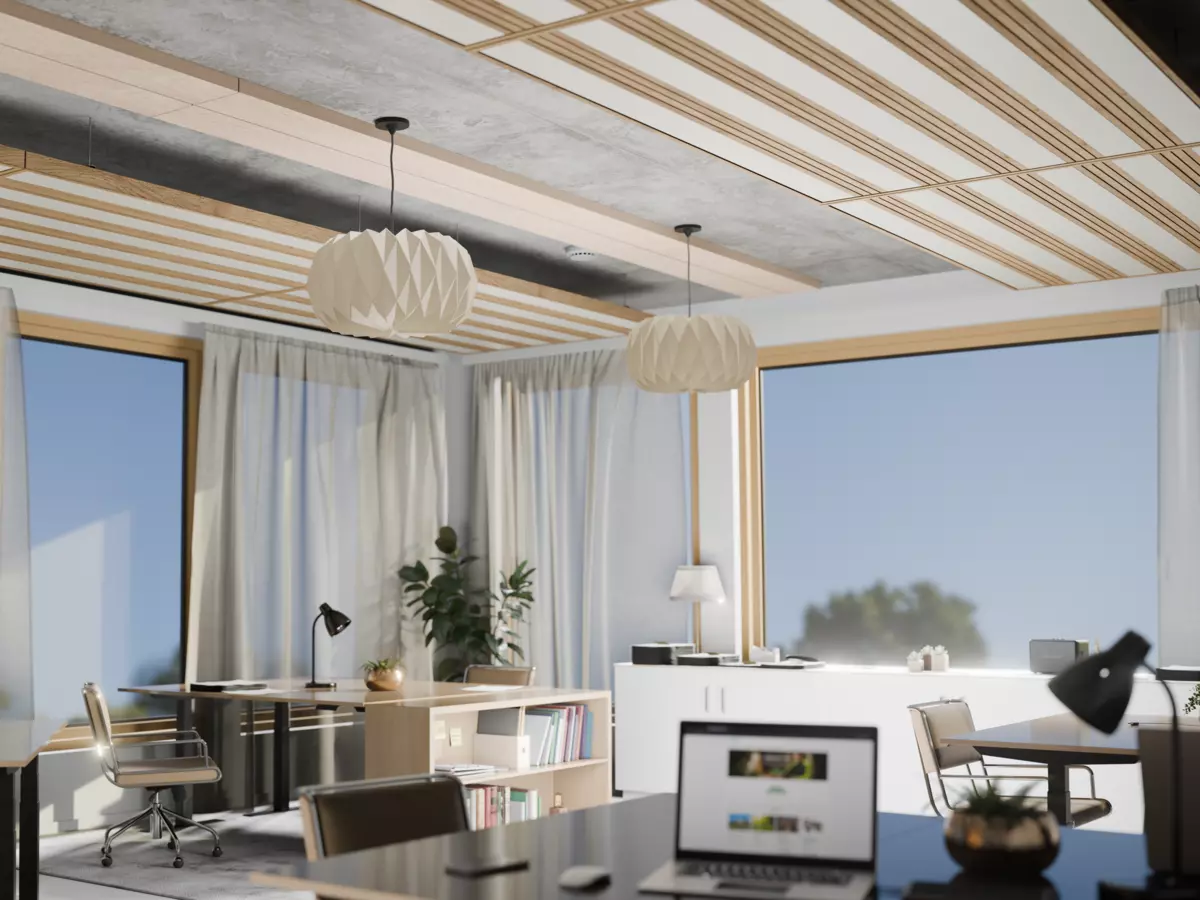

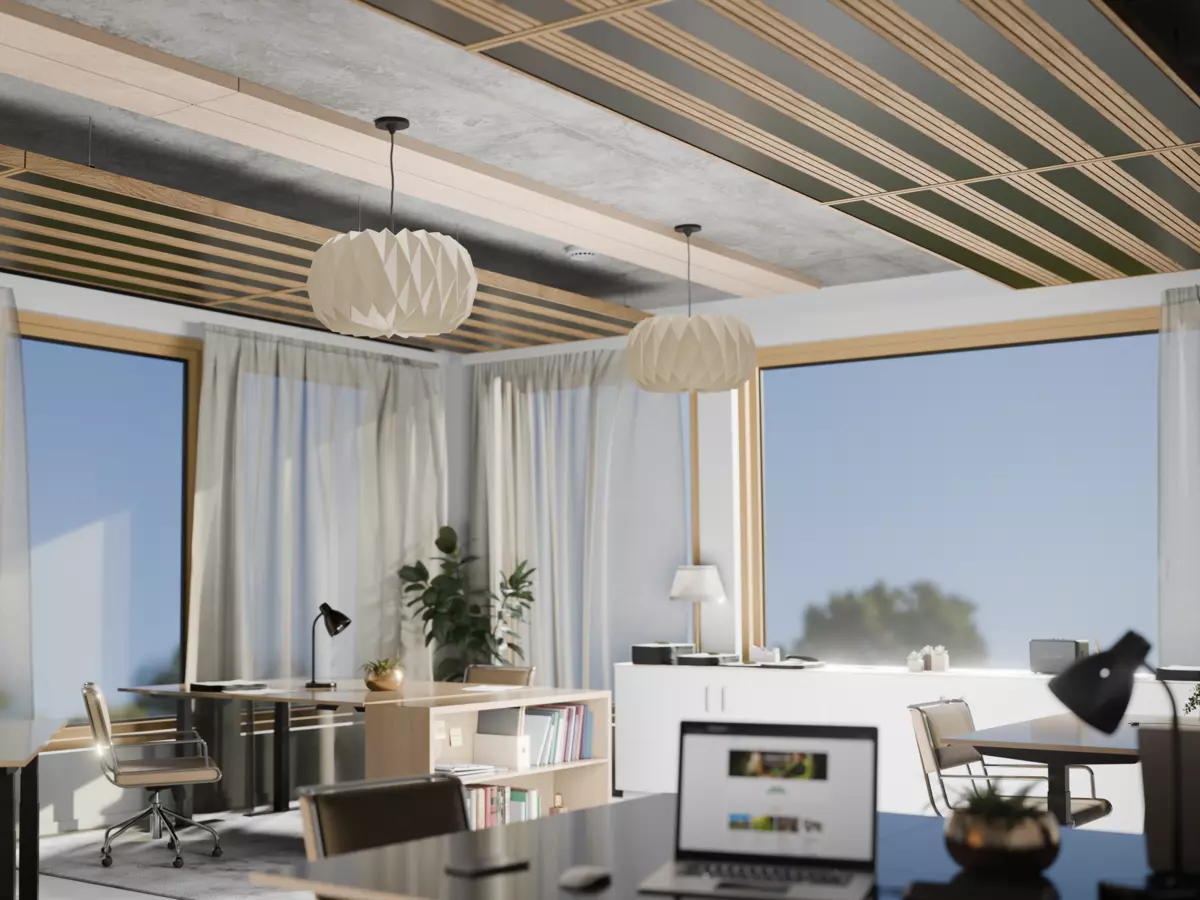

The fins with real wood surfaces define the natural wood appearance of the ceiling system. Different wood types and perforation variants enable different design solutions for the interior.

Dimensions:

Installation height: min. 180 mm

Standard dimensions with frame:
- Length: 1050 – 2550 mm
- Width: 650 – 1370 mm
- Height: 60 mm
- Pipe rows: 3 – 6
- Tube distances: 240 mm
Special dimensions on request

Capacity water:

Cooling: up to 102 W/m² (ΔT: 8 K)
Heating: up to 86 W/m² (ΔT: 15 K)

Acoustics:

Sound absorber structure with acoustic mat (mineral wool): αw up to 0,85
Sound absorption class B

CAURUS

Integrated supply air diffuser with thermal building mass connection

FAVO

Integrated supply air diffuser with thermal building mass connection
