VITA HCV 460 E1
- Enthalpy heat exchanger recovers moisture as well as heat – less dry indoor air in winter
- Thermal efficiency 77% (EN 13141-7)
- Demand-controlled ventilation with built-in humidity sensor
- Summer mode: supply air fan stops
- Fireplace mode with temporary overpressure indoors
- Built-in pressure measuring points for airflow balancing
- Fits in a 60 x 60 cm cupboard

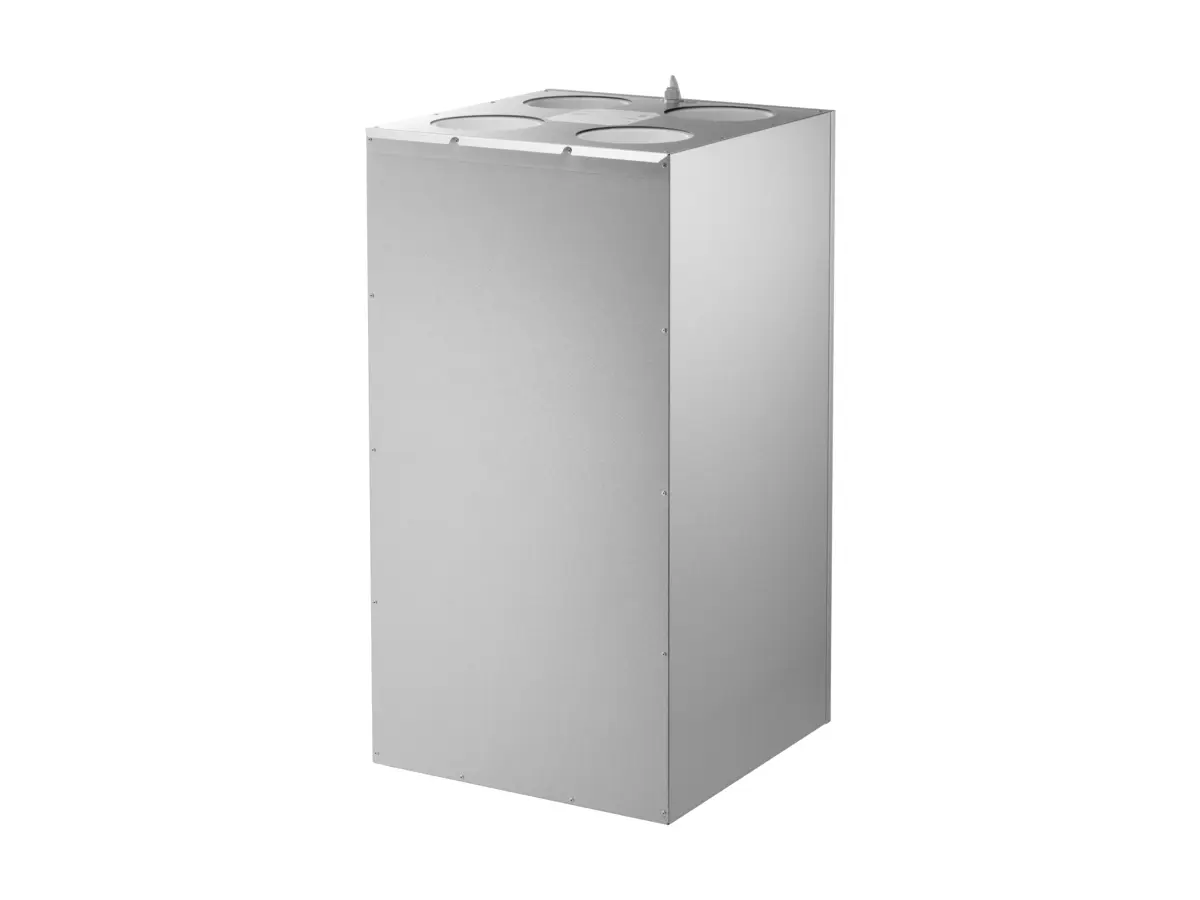

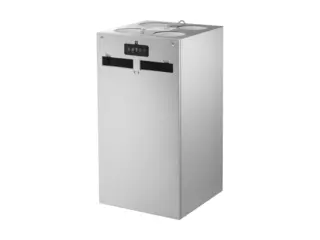

VITA HCV 460 E1 is a residential ventilation unit with heat recovery for vertical wall mounting. The unit has an enthalpy counterflow heat exchanger that recovers both heat and moisture. Moisture from the extract air is transferred to the supply air, so the indoor air does not become as dry in winter as with a standard heat exchanger.
The thermal efficiency is 77% (EN 13141-7, at reference airflow). The maximum airflow is 460 m³/h at 100 Pa, and the maximum declared airflow is 360 m³/h.
The unit fits in a 60 x 60 cm cupboard.

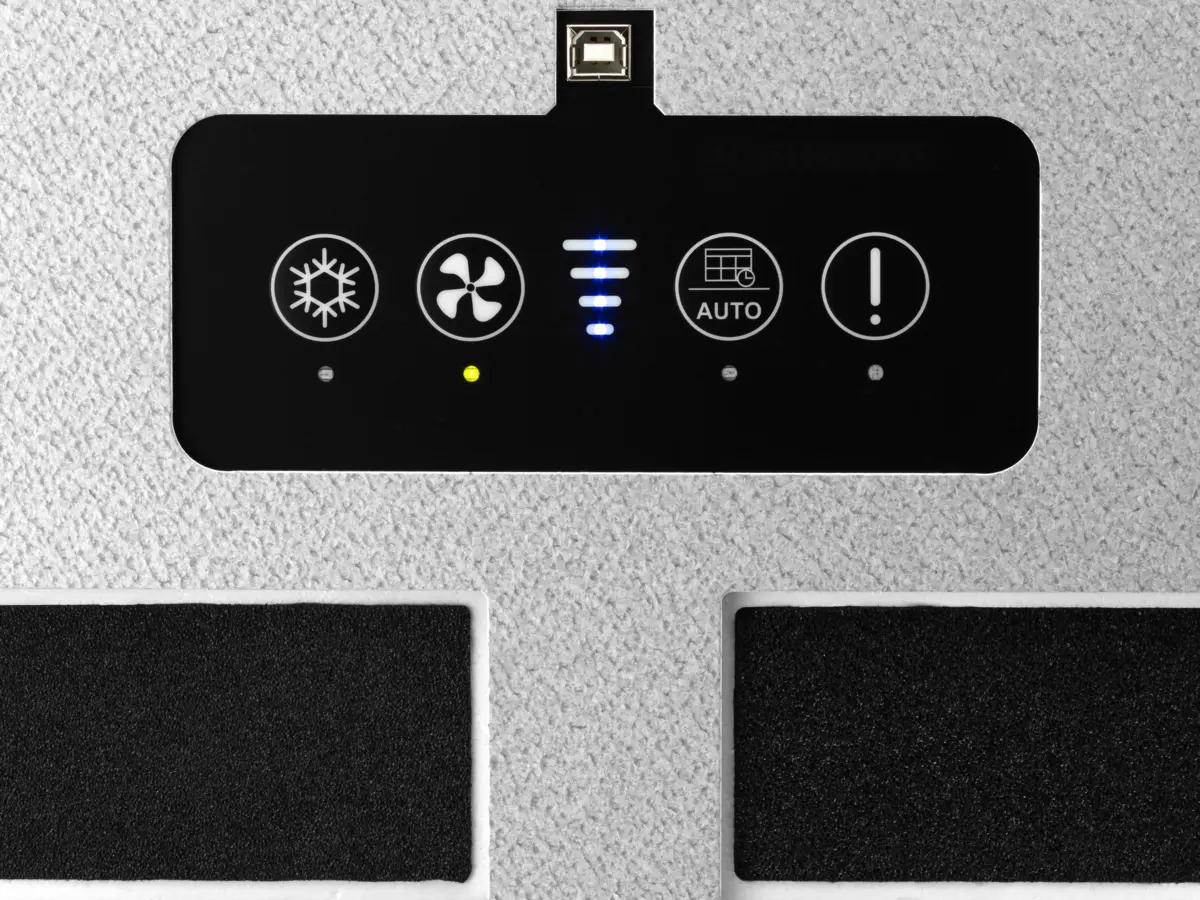

The unit has built-in controls. A Modbus RTU connection for building management systems is available with the HAC 2 accessory.
