VITA HCC 360 P2

Ventilation unit with plastic counterflow heat exchanger, for homes under 250 m² (14-61 l/s | 50-220 m3/h)

Thermal efficiency 88% (EN 13141-7)
Two built-in humidity sensors
Time-controlled ventilation with 11 pre-programmed weekly programmes
Summer mode: supply air fan stops
Fireplace mode with temporary overpressure indoors
Built-in pressure measuring points for airflow balancing
Electronic left/right switching of the airflow direction
Built-in Modbus TCP/IP connection for building management systems
Installation height 300 mm

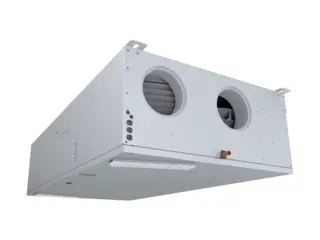

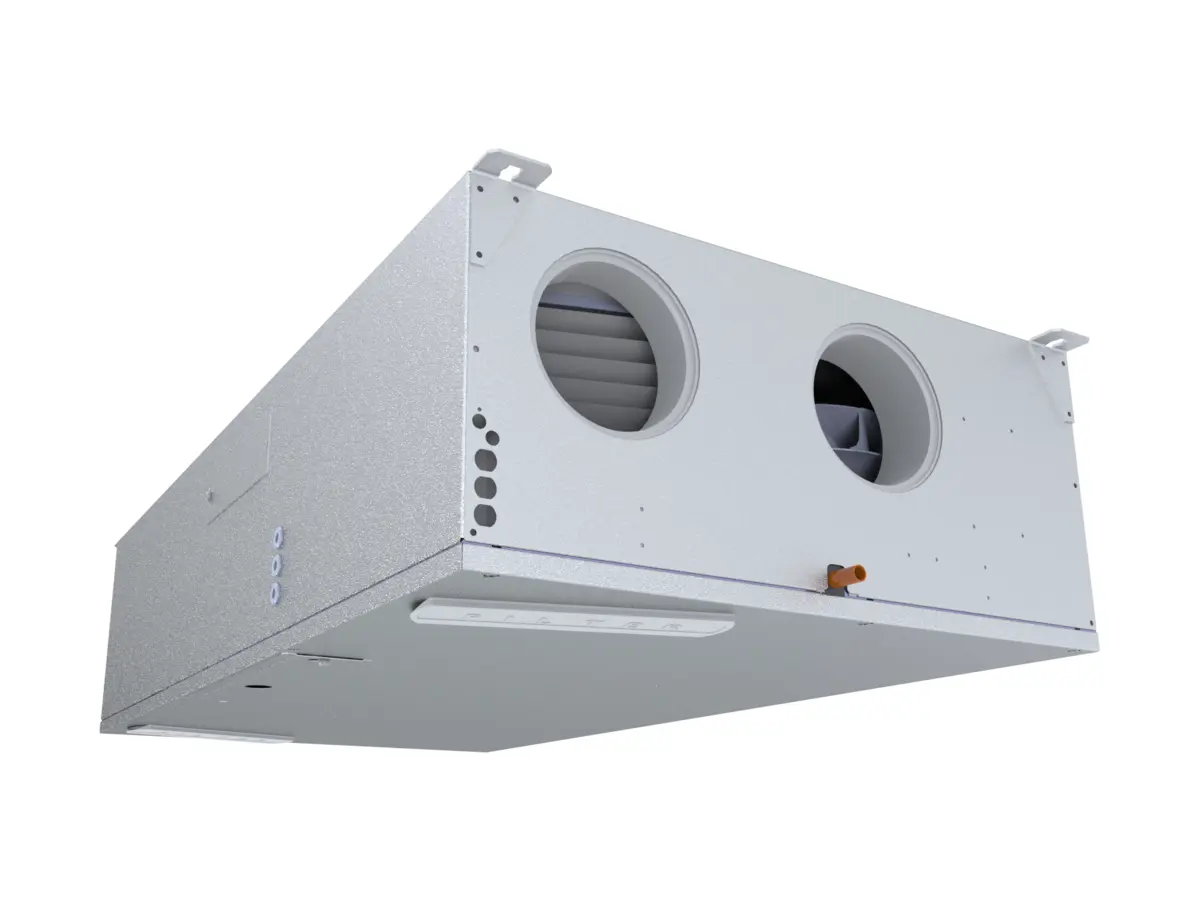

VITA HCC 360 P2 is a residential ventilation unit with heat recovery for ceiling or wall mounting. The unit has a plastic counterflow heat exchanger.

The thermal efficiency is 88% (EN 13141-7, at reference airflow). The maximum airflow is 360 m³/h at 100 Pa, and the maximum declared airflow is 220 m³/h.

The installation height is 300 mm, and the airflow direction can be switched electronically for left- or right-hand connection.

The unit has built-in controls and a built-in Modbus TCP/IP connection for building management systems.

Specification text

VITA HCC 360 P2 – residential ventilation unit with heat recovery.

Heat exchanger: Counterflow, plastic
Max. airflow at 100 Pa: 360 m³/h
Max. declared airflow: 220 m³/h
Thermal efficiency (EN 13141-7): 88%
Dimensions (W x D x H): 600 x 279 x 1122 mm
Weight: 34 kg
Duct connections: Ø125 mm
Max. power consumption: 161 W (1061 W with preheater)
Supply voltage: 230 V, 50 Hz
Protection class: IP20
BMS connection: Modbus TCP/IP (built-in), Modbus RTU via HAC 2 accessory
Commissioning: Dantherm PC-Tool
